These Design Flaws Contain:

1. AS02: Security Misconfigurations
2. AS03: Software Supply Chain Failures
3. AS04: Cryptographic Failures
4. AS06: Insecure Design

AS02: Security Misconfigurations

Happens when system, servers or applications are deployed with unsafe defaults, incomplete settings, or exposed services. These are not code bugs but mistakes in how the environment, software or network is set up. They create easy entry points for attackers.

even a small misconfig can expose sensitive data, enable priv esc, of give foothold to the attackers. Modern applications rely on complex stacks, cloud services, and third-party APIs. A single exposed admin panel, an open storage bucket, or misconfigured permissions can compromise the entire system.

Example:

In 2017, Uber exposed a backup AWS S3 bucket with sensitive user dta, including driver and rider information, because the bucket was publicly accessible. Attackers could download can directly without needing creds.

Common Patterns

Default credentials or weak passwords left unchanged
Unnecessary services or endpoints exposed to the internet
Misconfigured cloud storage or permissions (S3, Azure Blob, GCP buckets)
Unrestricted API access or missing authentication/authorisation
Verbose error messages exposing stack traces or system details
Outdated software, frameworks, or containers with known vulnerabilities
Exposed AI/ML endpoints without proper access controls

How To Prevent It

Harden default configurations and remove unused features or services
Enforce strong authentication and least privilege across all systems
Limit network exposure and segment sensitive resources
Keep software, frameworks, and containers up to date with patches
Hide stack traces and system information from error messages
Audit cloud configurations and permissions regularly
Secure AI endpoints and automation services with proper access controls and monitoring
Integrate configuration reviews and automated security checks into your deployment pipeline

FLAG 1 : Verbose Error Message

The verbose error is something which gives your the leaks in the error message and it is an application security misconfiguration, when a developer makes it easy by providing detailed verbose errors in the error message.

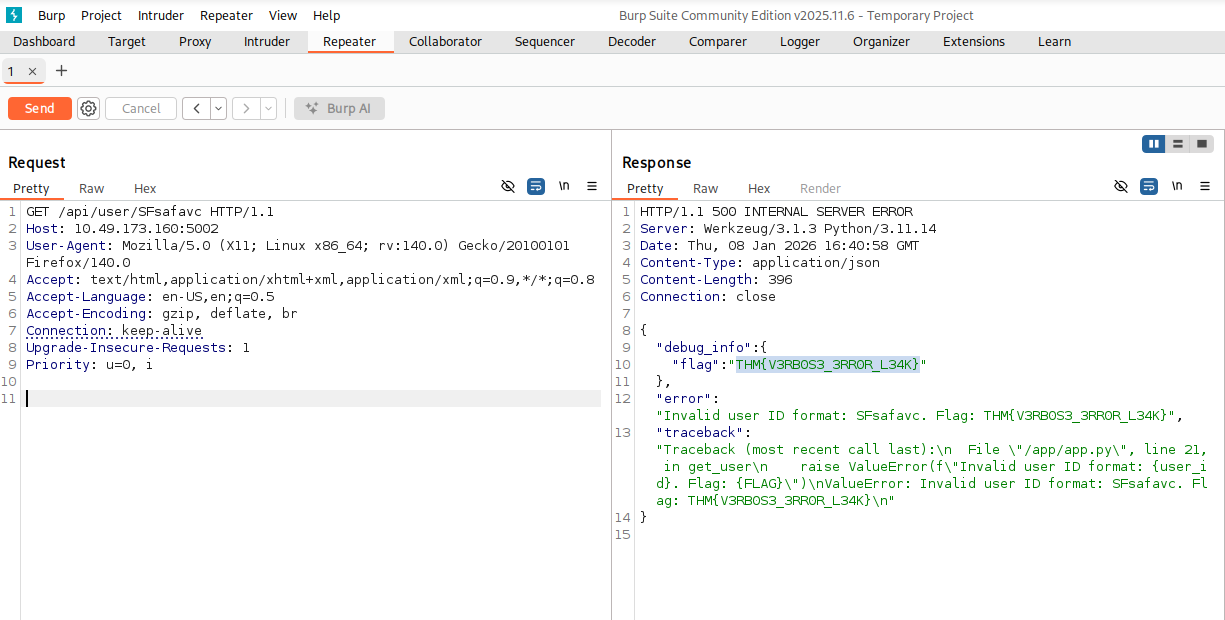

capture the request with the burp suite and send it to the repeater.

you can put random input in /api/user/<random string> , and the error shows the verbose error FLAG.

Ans. THM{V3RB0S3_3RR0R_L34K}

AS03: Software Supply Chain Failures.

Software supply chain failures happen when applications rely on components, libraries, services, or models that are compromised, outdated, or improperly verified.

The vulnerability does not depend on the code but the software it is dependent on. Attackers can exploit these weak links and inject malicious codes, bypass security, or steal sensitive data.

Common Patterns

Using unverified or unmaintained libraries and dependencies
Automatically installing updates without verification
Over-reliance on third-party AI models without monitoring or auditing
Insecure build pipelines or CI/CD processes that allow tampering
Poor license or provenance tracking for components
Lack of monitoring for vulnerabilities in dependencies after deployment

How To Protect The Supply Chain

Verify all third-party components, libraries, and AI models before use
Monitor and patch dependencies regularly
Sign, verify, and audit software updates and packages
Lock down CI/CD pipelines and build processes to prevent tampering
Track provenance and licensing for all dependencies
Implement runtime monitoring for unusual behaviour from dependencies or AI components
Integrate supply chain threat modelling into the SDLC, including testing, deployment, and update workflows

FLAG 2

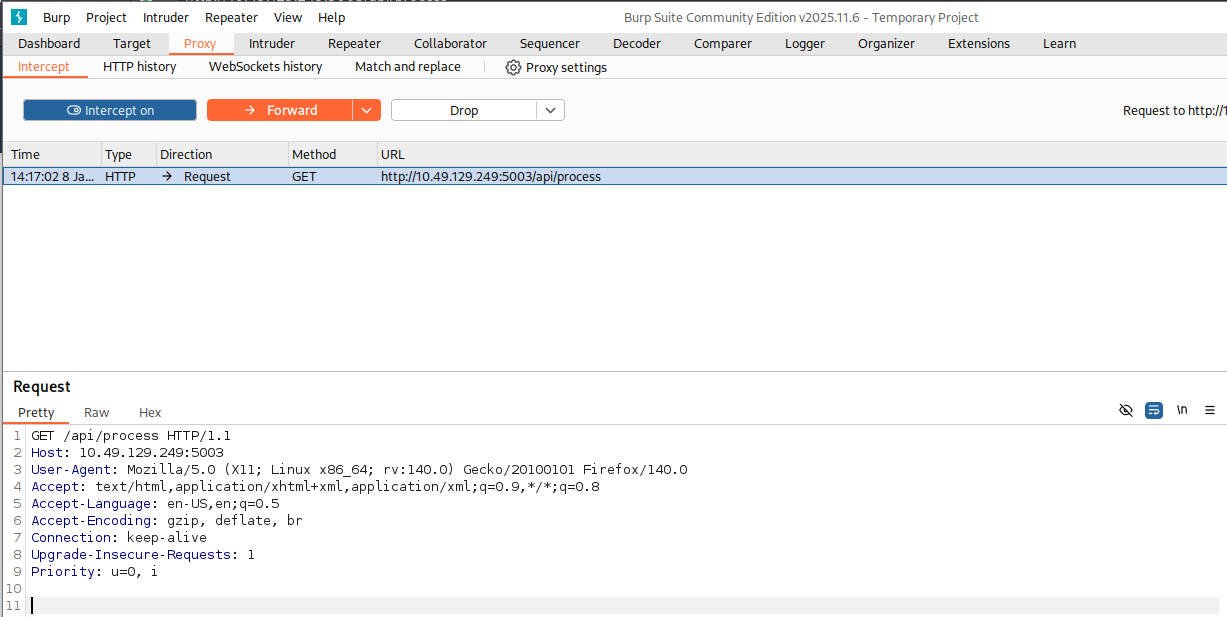

Capture /api/process with burpsuite. change GET to POST.

And we get this, this might be the hint that we have to add content-type as application/json and then process the request.

from flask import Flask, render_template, request, jsonify
import sys
import os

# Import from local unverified library
sys.path.insert(0, os.path.join(os.path.dirname(__file__), 'lib'))
from vulnerable_utils import process_data, format_output, debug_info

app = Flask(__name__)

@app.route('/')
def index():
    return render_template('index.html')

@app.route('/api/process', methods=['POST'])
def process():
    """Process user input using third-party library"""
    try:
        data = request.json.get('data', '')
        if not data:
            return jsonify({'error': 'Missing data parameter'}), 400

        # Check for debug mode
        if data == 'debug':
            return jsonify(debug_info())

        processed = process_data(data)
        formatted = format_output(processed)

        return jsonify({
            'result': formatted,
            'status': 'success'
        })
    except Exception as e:
        return jsonify({'error': str(e)}), 500

@app.route('/api/health')
def health():
    """Health check endpoint"""
    return jsonify({
        'status': 'healthy',
        'version': '1.0.0'
    })

if __name__ == '__main__':
    app.run(host='0.0.0.0', port=5000, debug=True)

this is the code give in the task file, if we check the line we have to use the value "data": "debug"

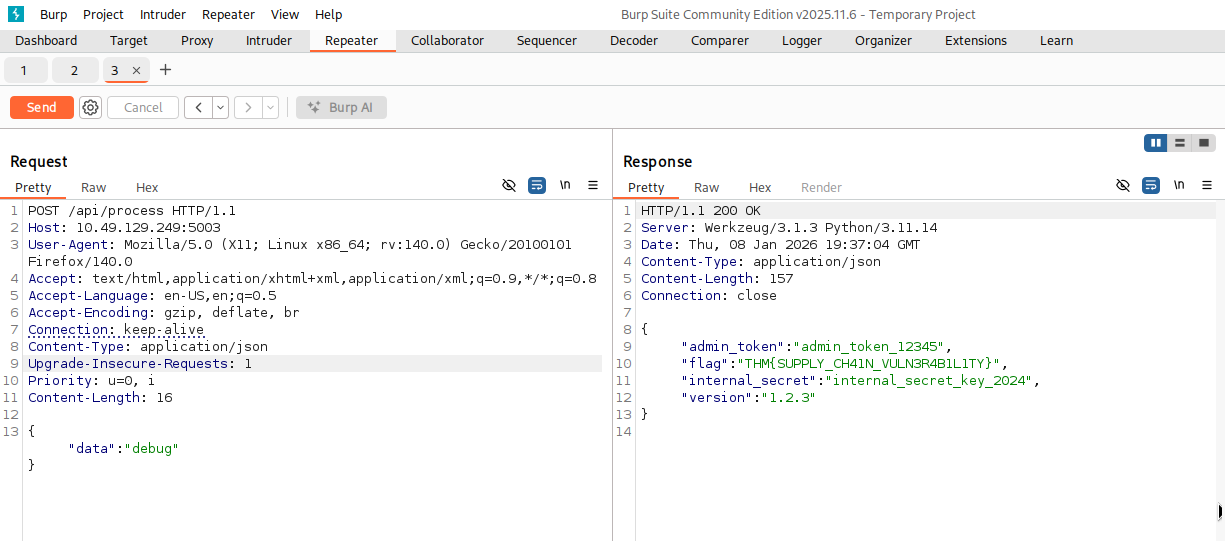

so as you can see we used Content-Type = application/json and "data":"debug"

Ans. THM{SUPPLY_CH41N_VULN3R4B1L1TY}

AS04: Cryptopgraphic Failures

These types of failures happen when cryptography is used incorrectly or not at all. This includes weak algos, hard-coded keys, or unencrypted sensitive data. These let attackers access the sensitive data.

Common Patterns.

Using deprecated or weak algorithms like MD5, SHA-1, or ECB mode
Hard-coded secrets in code or configuration
Poor key rotation or management practices
Lack of encryption for sensitive data at rest or in transit
Self-signed or invalid TLS certificates
Using AI/ML systems without proper secret handling for model parameters or sensitive inputs

How To Prevent It

Use strong, modern algorithms such as AES-GCM, ChaCha20-Poly1305, or enforce TLS 1.3 with valid certificates
Use secure key management services like Azure Key Vault, AWS KMS, or HashiCorp Vault
Rotate secrets and keys regularly, following defined crypto periods
Document and enforce policies and standard operating procedures for key lifecycle management
Maintain a complete inventory of certificates, keys, and their owners
Ensure AI models and automation agents never expose unencrypted secrets or sensitive data
The web application in this room contains a weakness of this type for you to explore.

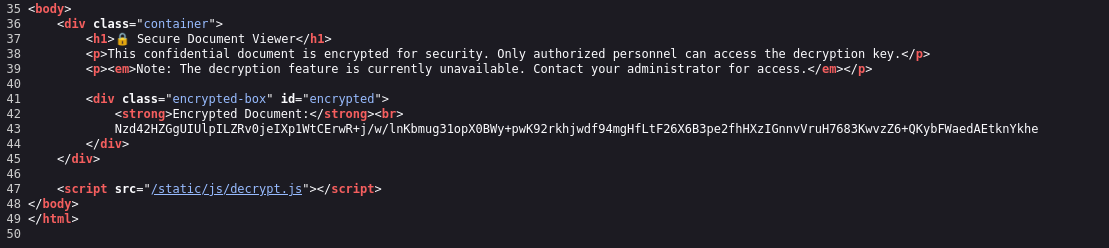

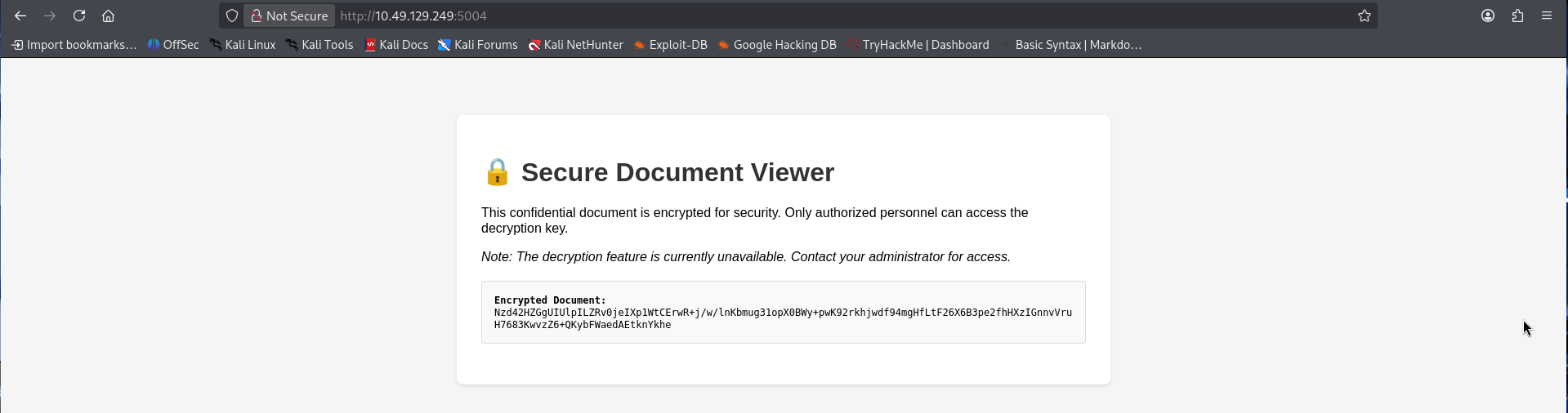

we can see the encrypted text here.

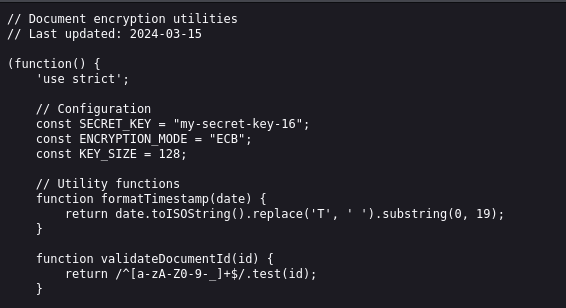

he we can see that in the source code there is a file name decrypt.js here we can see the encryption used here is ECB and the secret-key is my-secret-key-16

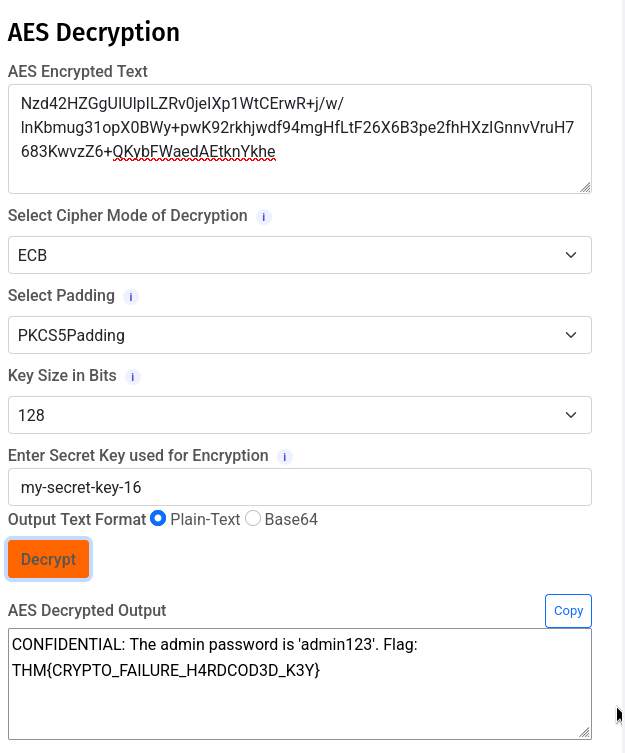

so we can use Online ECB Decryption

And here we go, we got out flag.

Ans. THM{CRYPTO_FAILURE_H4RDCOD3D_K3Y}

AS06: Insecure Design

It happens when application logic is flawed or architecture is built into a system from the start. These flaws stem from skipped threat modelling, no design requirements or reviews, or accidental errors.

we can’t fix the insecure design flaws, It’s built into the workflow, logic and trust boundaries. Fixing it means rethinking how systems, and now AI, make decisions.

Common Insecure Designs In 2025

Weak business logic controls, like recovery or approval flows
Flawed assumptions about user or model behaviour
AI components with unchecked authority or access
Missing guardrails for LLMs and automation agents
Test or debug bypasses left in production
No consistent abuse-case review or AI threat modelling

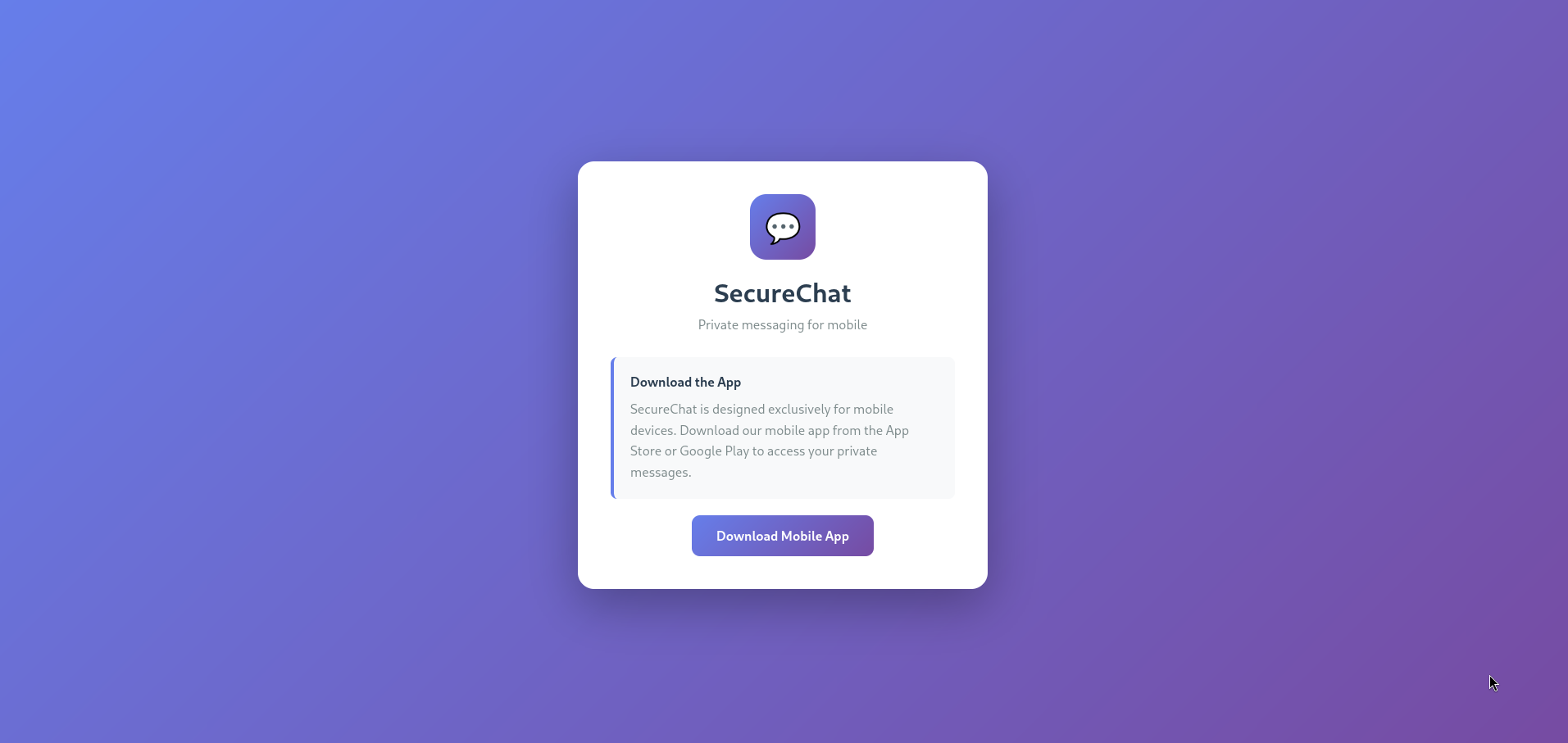

so here we can see the, it says the must be downloaded on mobile. but obviously its and insecure design flaw and you can see the app has private messages

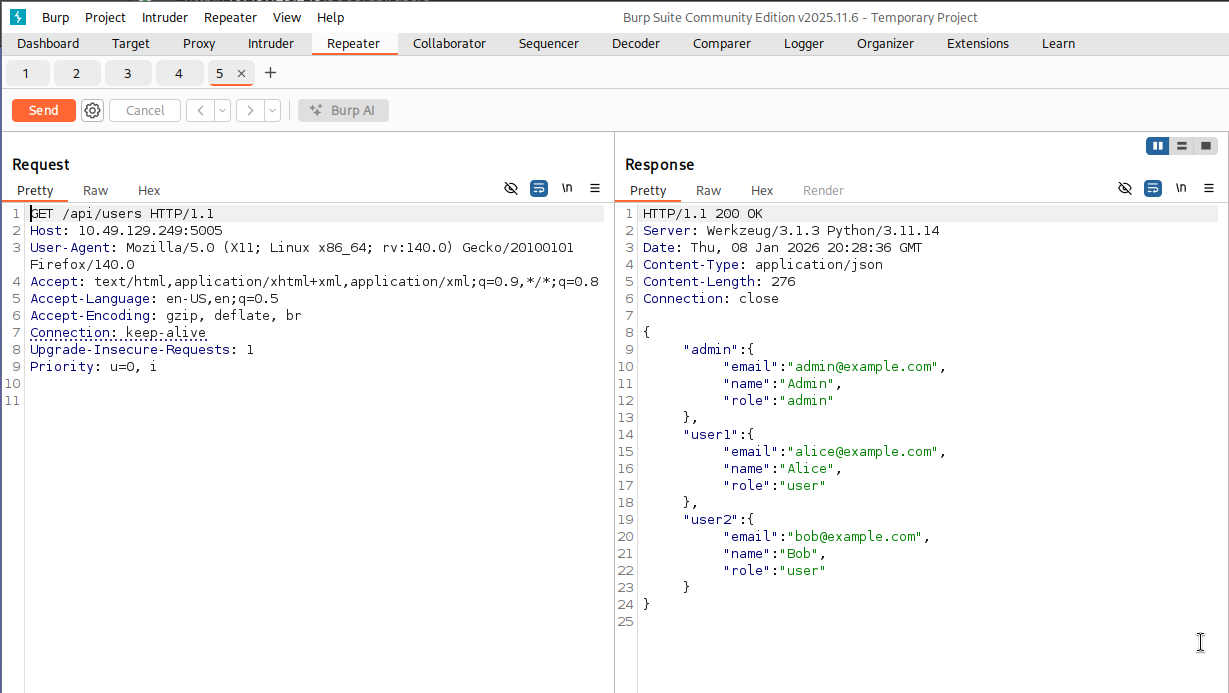

capture the /api/users/ request in the burpsuite.

so here we can see some users and their role.

we will try another request to fetch the admin messages /api/messages/admin here you can see we got the flag as due to insecure design, some backend api endpoints are left open to be traversed.

Ans. THM{1NS3CUR3_D35IGN_4SSUMPT10N}

Conclusion

Security design failures across AS02 Security Misconfigurations, AS03 Software Supply Chain Failures, AS04 Cryptographic Failures, and AS06 Insecure Design all come from the same root cause: weak foundations.

You cannot add security at the end and expect it to work. Strong systems start with clear security requirements, realistic threat assumptions, controlled configurations, vetted dependencies, and sound cryptographic choices.

Treat defaults with suspicion, treat every dependency as a potential risk, and keep design simple enough to reason about. Get the design right early, and you avoid a long future of preventable incidents.
